FEATURED 2026 PJ Trailers DT GN (16') - 21644PJ

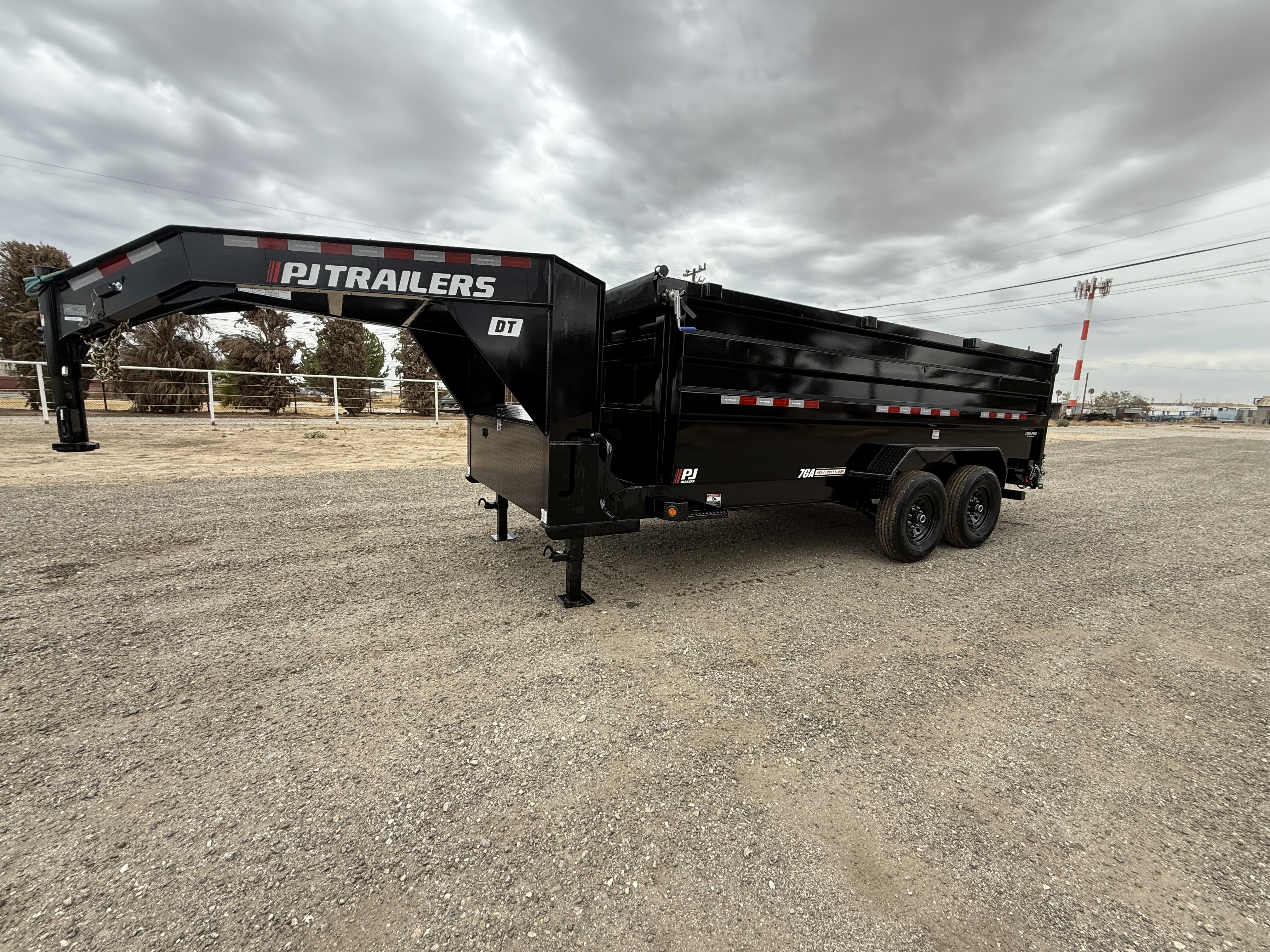

2026 PJ Trailers DT GN (16')

83" Pro-Lift Dump (DT GN)
Does getting a job done—especially big ones that are difficult and challenging—drive you? Then the 83" Pro-Lift Dump (DT) is for you
For professionals in construction, landscaping, and even waste management, the DT is engineered and designed to haul and transport heavy-duty, bulky cargo and debris. And it gets the job done with its first-rate 12-ton front-mounted telescopic cylinder and adaptable 2-way gate system, making unloading and loading an easy task instead of a back-breaking one. We know you’re driven; it’s time to get a trailer that has the same drive as you.

Features may include:

• Axles [72BS] (2) 7,000# Electric / Spring
• Suspension  6-Leaf Slipper Spring Suspension
• Tongue 8" x 13 lb. I-beam Tongue
• Coupler  [R] GN 2-5/16" Round (25,000 lb.) w/ Toolbox
• Jack Drop Leg Jack (12,000 lb.)
• Frame  8" x 13 lb. I-Beam Main Frame
• Cross-Members  3” Channel Crossmembers 16” oc
• Floor 7ga. Steel Bed
• Fenders 1/8" Treadplate Steel Fenders
• Ramps 6' 5" Slide-In Channel Ramps
• Stake Pockets  24" Stake Pocket Spacing
• Wiring   All-Weather Wiring Harness (7-way RV)
• Tires  ST235/80R16 Radial Tires 10 ply (3,520 lbs.)
• Paint Color [K] Primer + Black Powder Coat
• Tie-Downs  (4) D-Rings (Welded inside the Box)
• Breakaway System  Electric Breakaway System w/ Charger
• Battery 12V Deep Cycle Battery
• Charging System 110V Integrated Trickle Charger
• Hydraulics  Hydraulic - Power Up / Gravity Down
• Lift Type 3-Stage Telescopic Cylinder
• Sides  24" 10ga. UniWall Steel Sides
• Stabilizers  Rear Stabilizer Stands
• Steps Treadplate Step (Both Sides)
• Storage
• Tarp   Roll-up Tarp Kit (Pull Bar) 7' x 20'
• Cargo Winch
• Tail    [T] Split / Spreader Gate
• Dump Gate 2-Way Gate (Barn Doors & Spreader Gate)
• Lift Cylinder  120" Cylinder on 14' length & 144" Cylinder on 16' length
