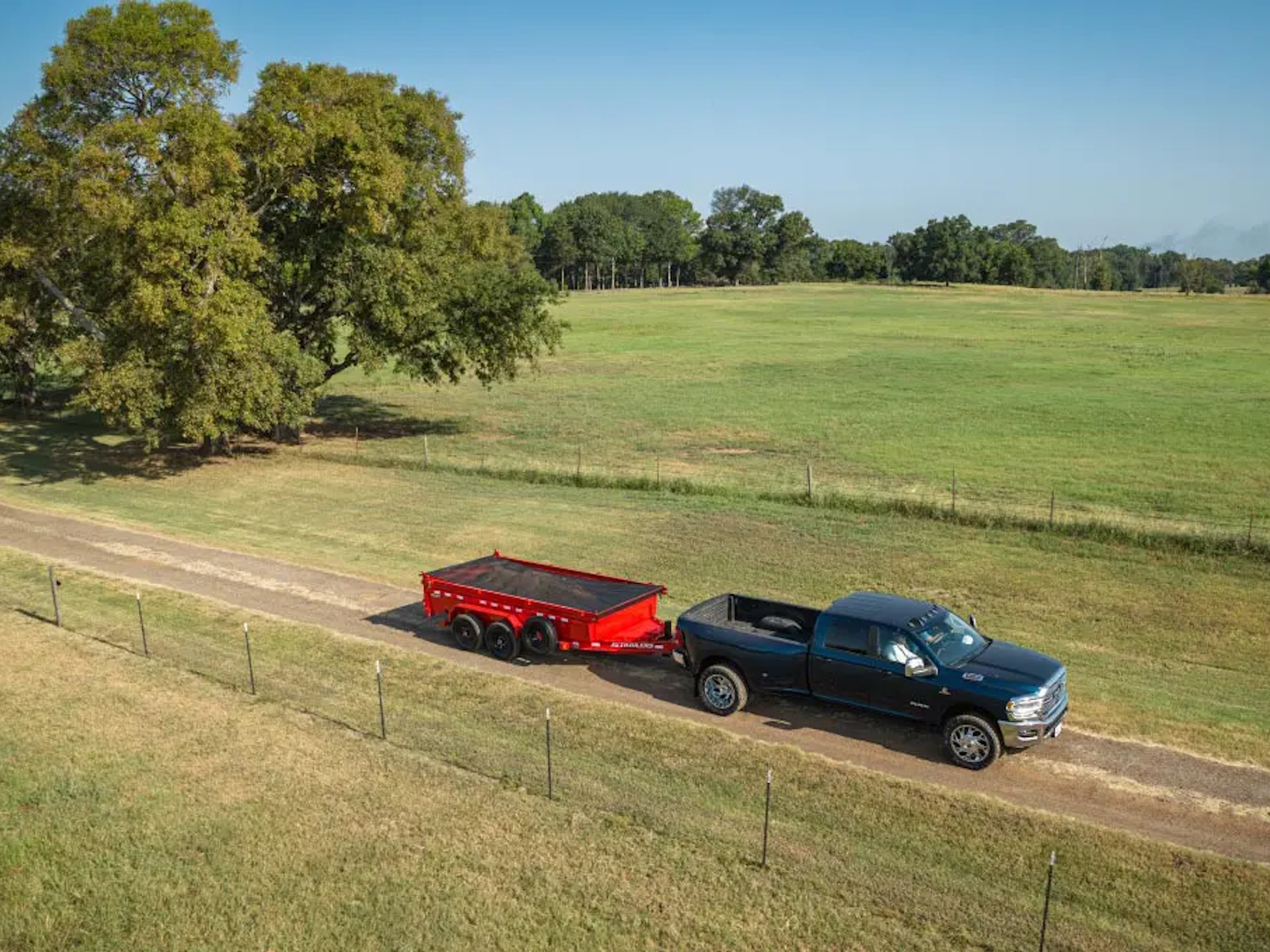

FEATURED 2027 PJ Trailers 14K Low-Profile Dump PRO (DL) 12 ft- 14628PJ
Get in Touch
AT A GLANCE
Industry
Trailer
Make
PJ Trailers
Category
Dump Trailer
Year
2027
Model
14K Low-Profile Dump PRO (DL)
Trim
12 ft
Stock
14628PJ
Subcategory
Dump Trailer
Description

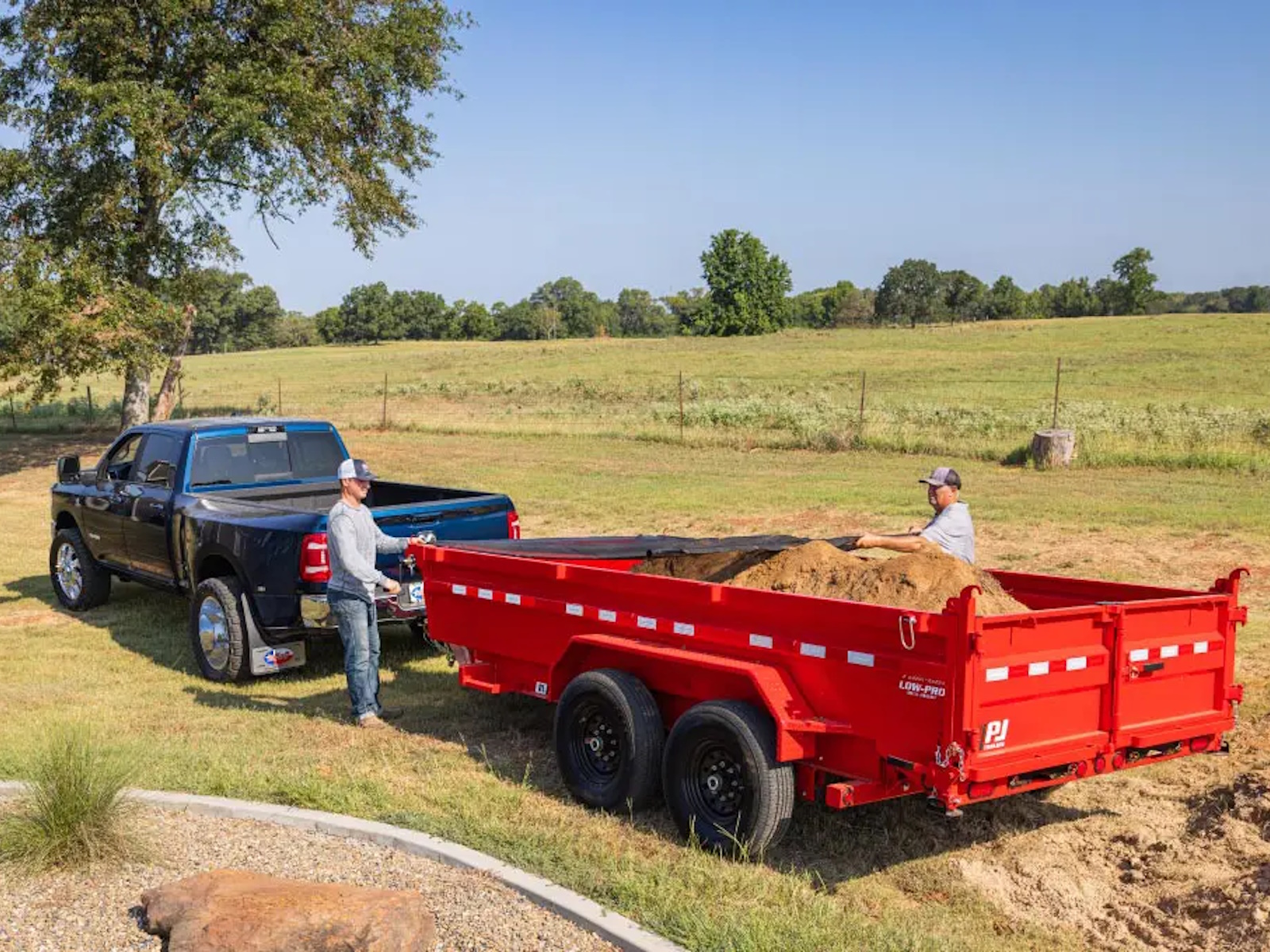

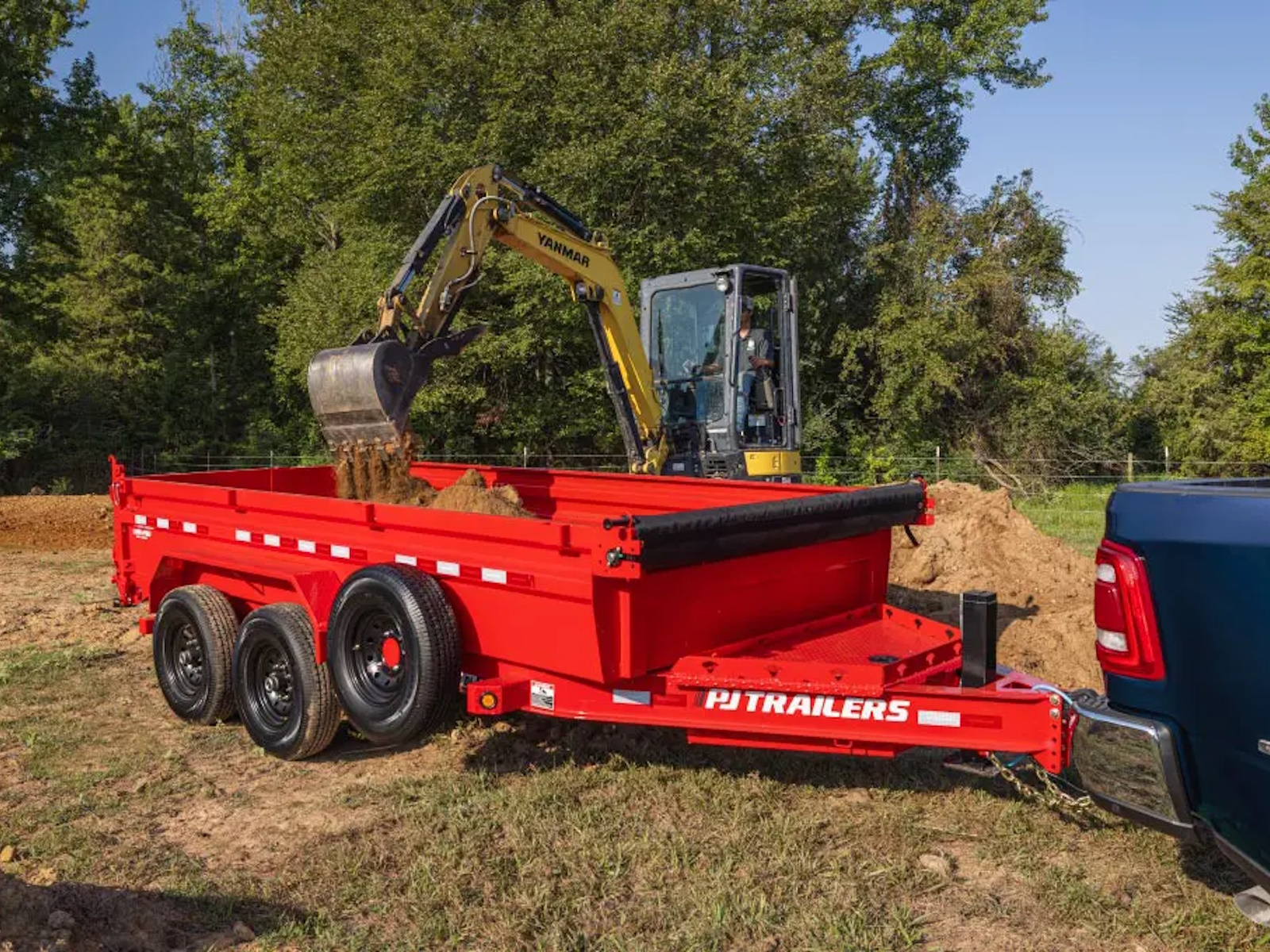

2027 PJ Trailers 14K Low-Profile Dump PRO (DL) 12 ft
14K Low-Profile Dump PRO (DL)
If you’re a pro, then it’s time to start hauling like one—say hello to the 14K Low-Profile Dump PRO Trailer (DL).
It’s tougher. It’s stronger. It’s sturdier. With a heavy-duty 7-gauge floor and seamless I-beam design, the DL is engineered around the needs of professionals and for those transporting large amounts of material or equipment. And while it’s built to handle heavy-duty tasks, it’s also packed with convenient features that make your life easier such as an ultra-low profile deck and accessible slide-in channel ramps.
What Drives You, Drives Us™

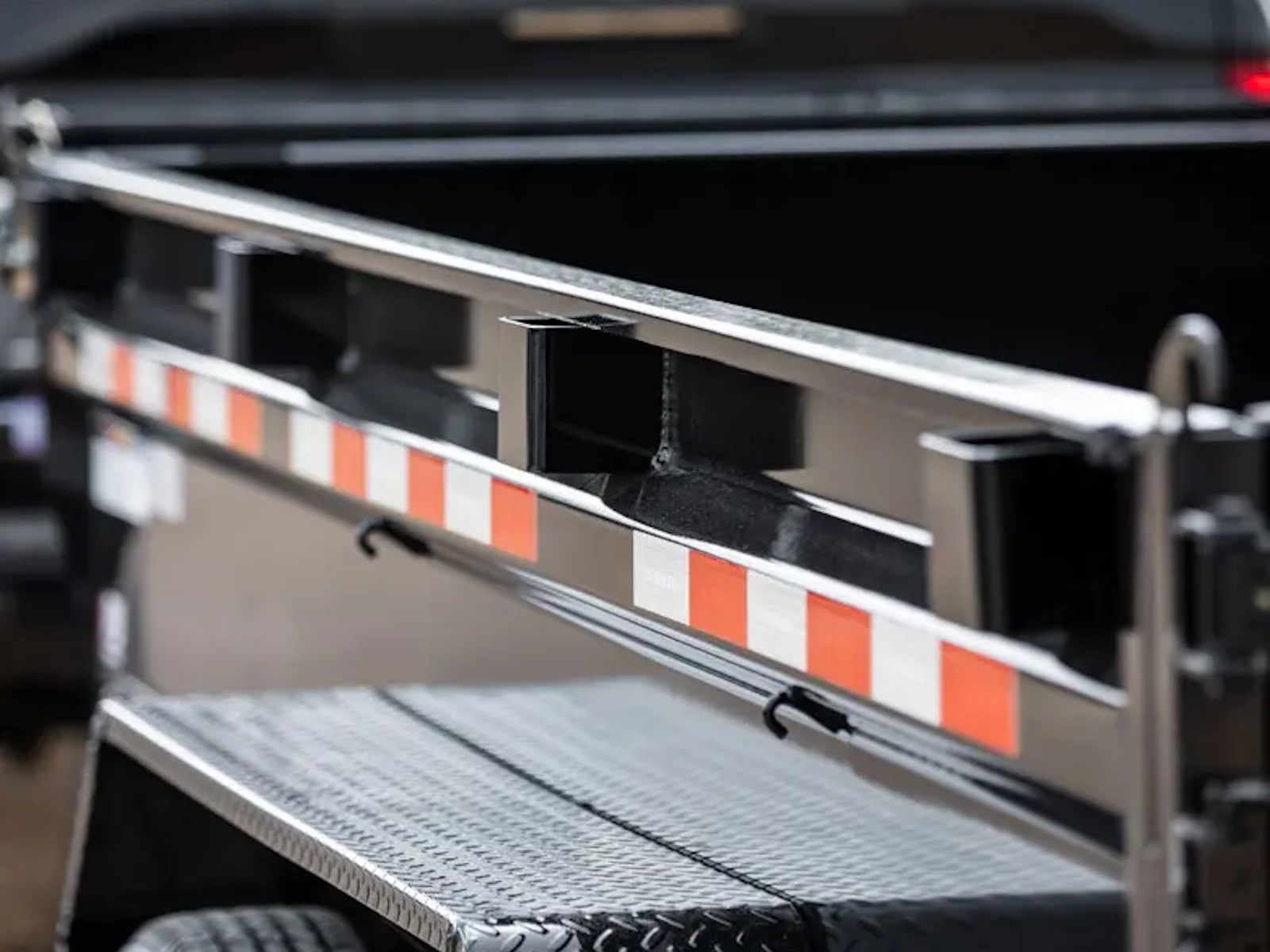

UNIWALL STEEL TECHNOLOGY
Using form-rolled steel to add structural integrity, our UniWall Steel Technology reduces corrosion-vulnerable seams while lowering the trailer's weight and increasing capacity. An innovative technology that delivers an overall better experience for customers

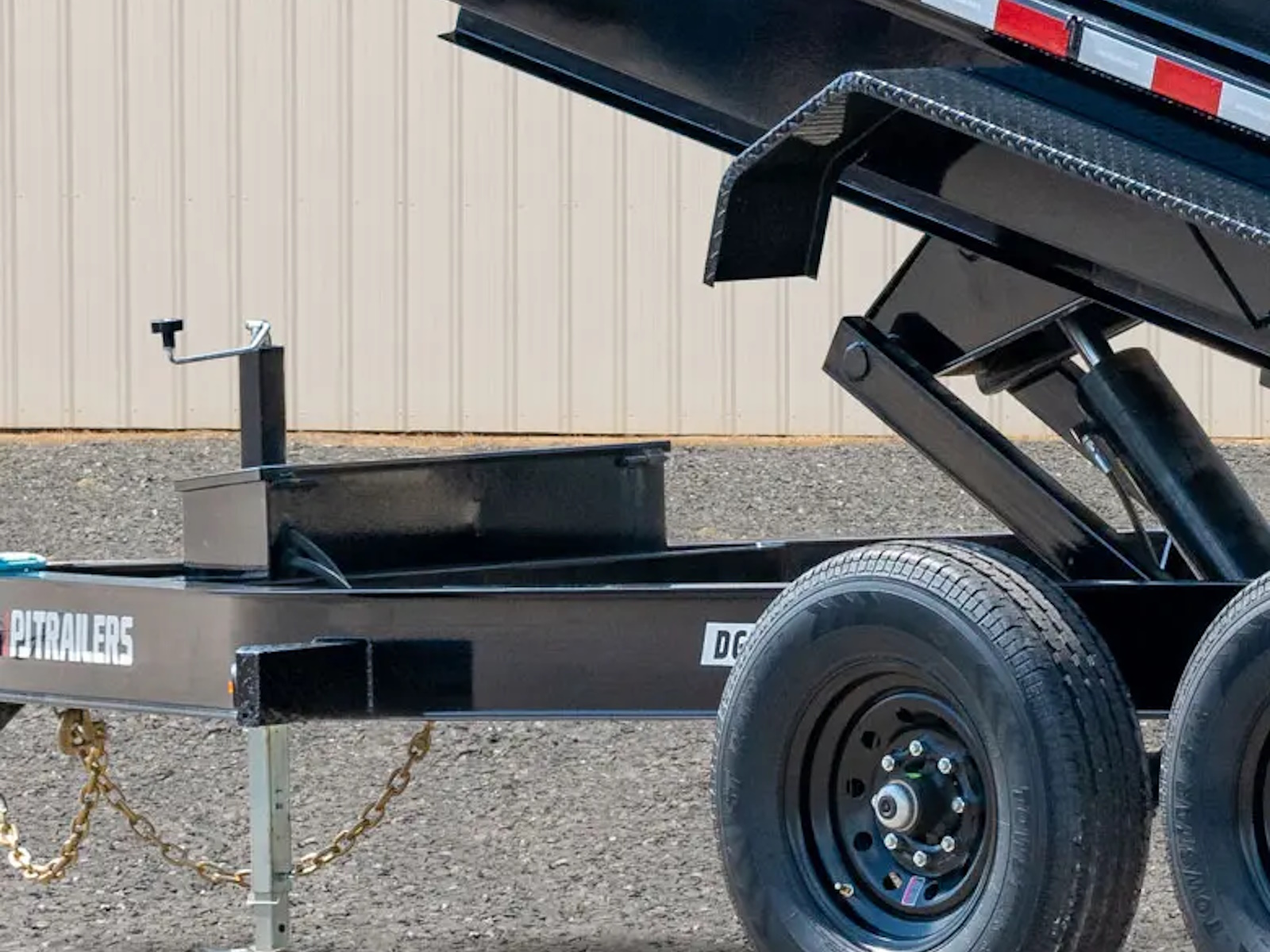

SEAMLESS I-BEAM FRAME DESIGN
With its sturdy construction and reliable performance, our seamless I-Beam offers a more robust and dependable frame that ensures your dump trailer can take on the most demanding jobs.

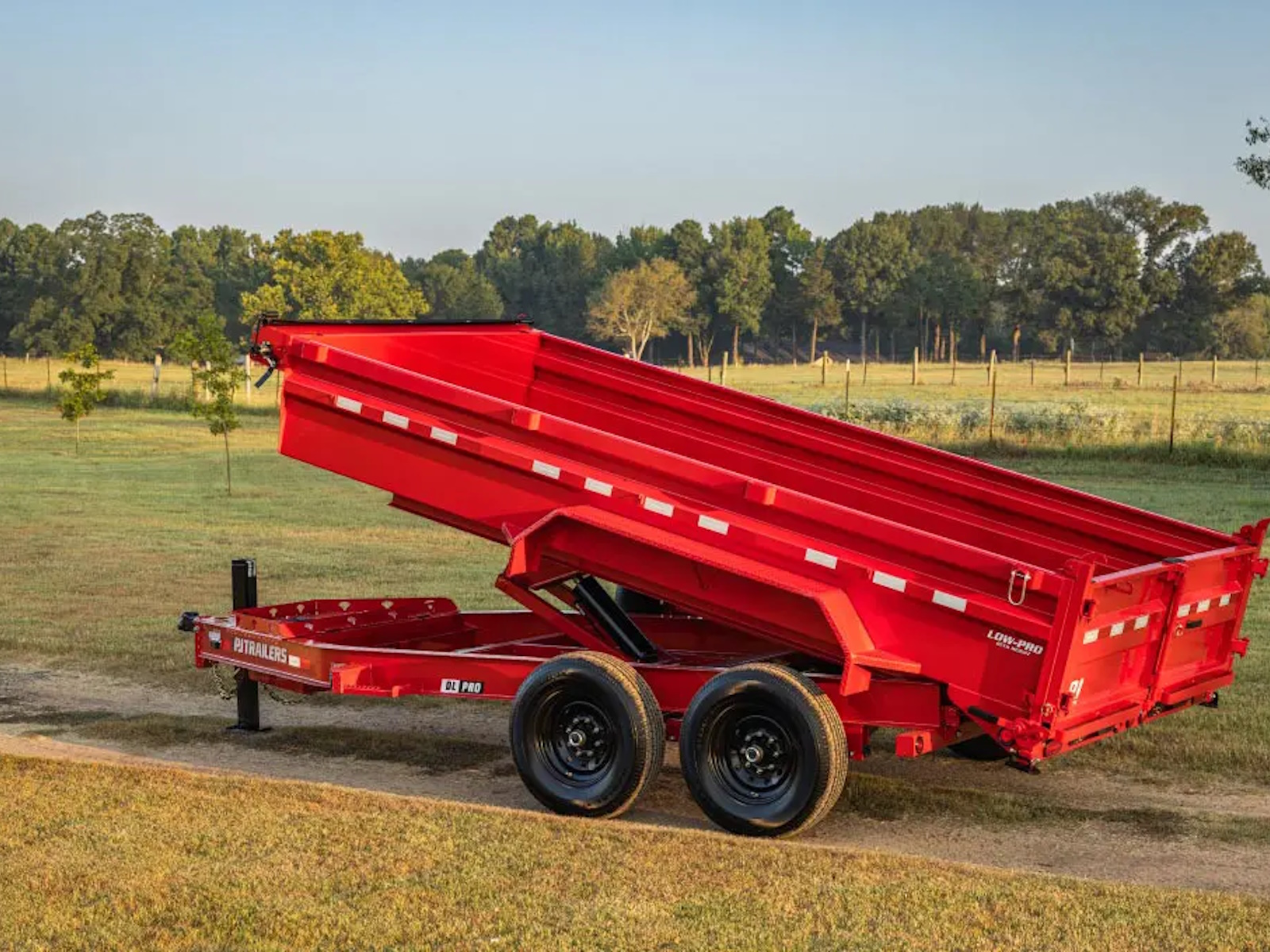

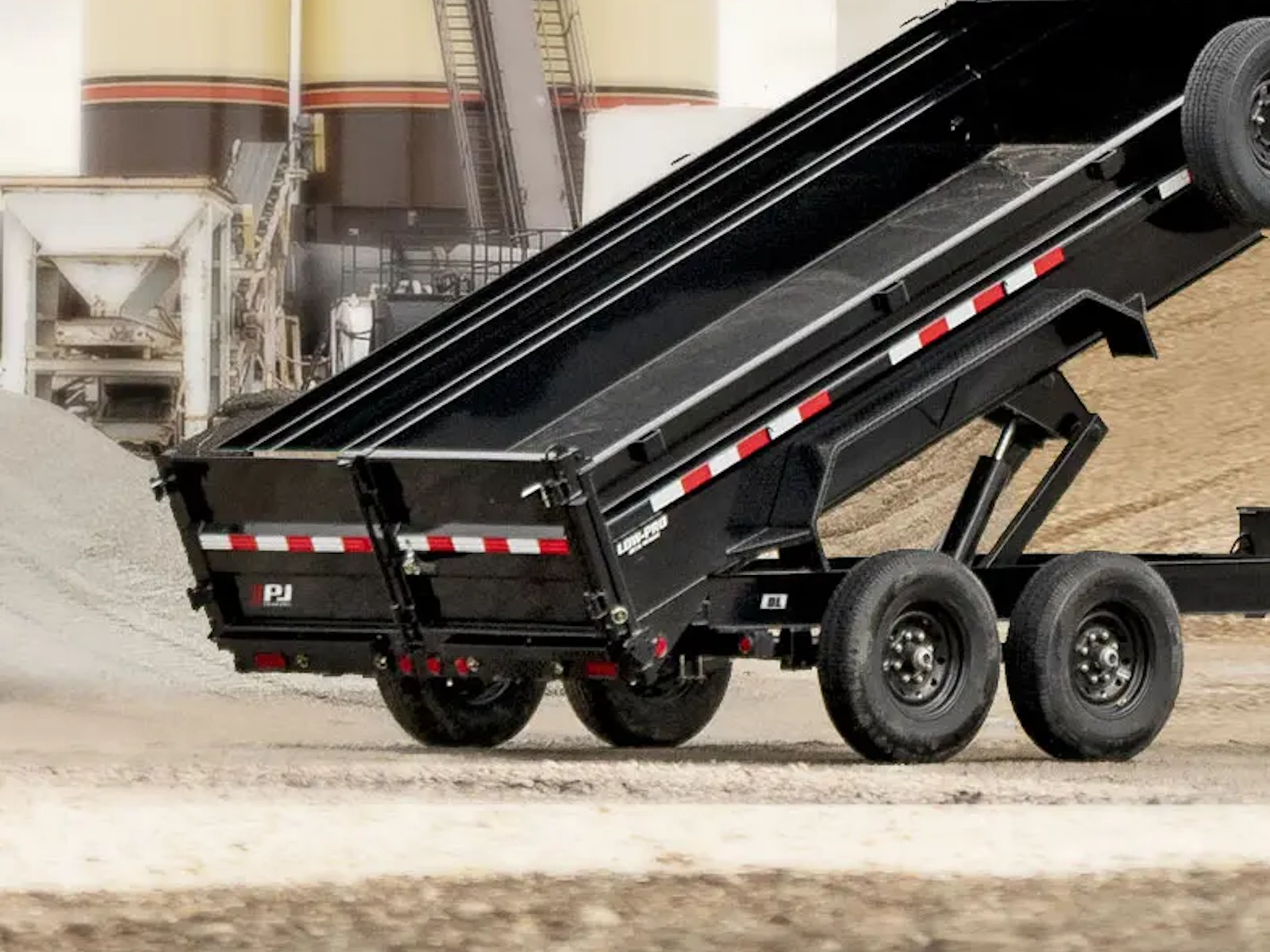

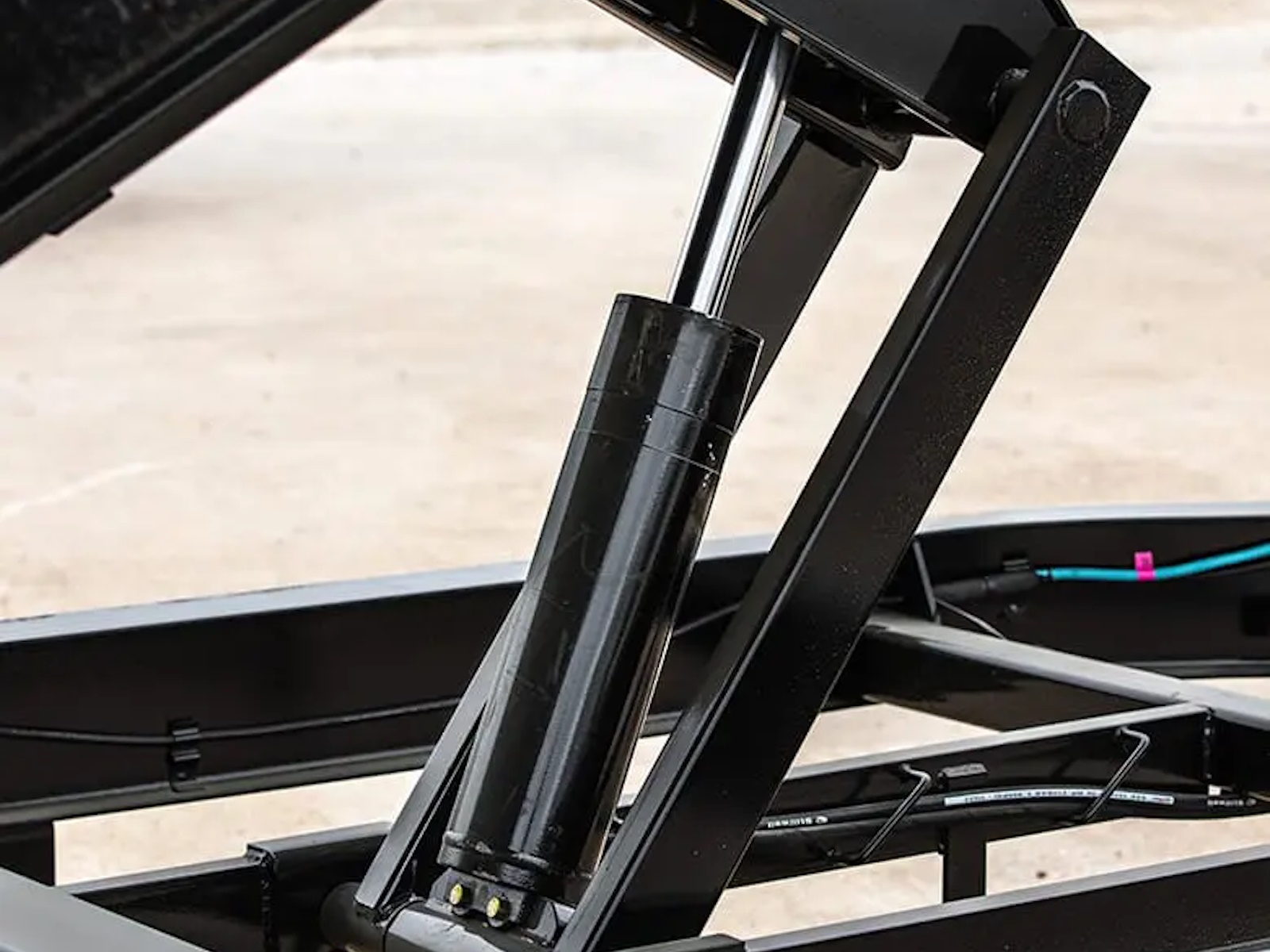

SCISSOR LIFT WITH POWERFUL CYLINDER
Experience lifting power like never before with our Scissor-Lift Hydraulic System. Featuring strong and efficient lifting capabilities, a stable lifting platform, and power-up/power-down functionality for quick dump cycles, this system will keep you hustling from dawn to dusk.
DROP AXLES (OPTIONAL)
Allowing you to lower the deck by 4", our optional drop axles make it easier to quickly load and unload heavy materials with greater ease and efficiency. It's a versatile option that your back will thank you for when the going gets tough.
Info
Condition
New
Location
Bonander Trailer - Turlock
Availability
Available
VIN
4P51D1724V1444415
Dry Weight
3665
Color
BLACK
Hitch Type
BUMPER PULL
Axles
2
Length
12ft
Width
83in
Gvwr
9900
Axle Capacity
2-7000lb
Payload Capacity
6235
Hitch Ball Size
2-5/16in
Specifications
Axles
[72BS] (2) 7,000# Electric / Spring | Options: [72BD] (2) 7,000# Electric / Drop Axle | Options: [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring | Options: [92BD] (2) 7,000# w/14 Ply LR-G Tires Electric / Drop Axle | Options: [Y2BS] (2) 7,000# w/215/75R17.5 LR-H Singles Electric / Spring
Suspension
6-Leaf Slipper Spring Suspension
Tongue
8 in x 10 lb. Formed I-beam Tongue
Coupler
[J] BP 2-5/16 in Adjustable- Demco EZ-Latch | Options: [P] 3 in Pintle Eye - Channel-Mount (20,000 lb.) | Options: [R] GN 2-5/16 in Round (25,000 lb.) | Options: [S] GN 2-5/16 in Square (25,000 lb.) | Options: [T] BP 2-5/16 in Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Notes
Jack: Drop Leg Jack (12,000 lb.) | Stake Pockets: Stake Pockets on Both Sides (Quantity Varies by Length) | Wiring: All-Weather Wiring Harness (7-way RV) | Tie-Downs: (4) D-Rings (Welded inside the Box) | Tie-Downs - Options: [-DR01] 1 Extra Pair D-Rings | Breakaway System: Electric Breakaway System w/ Charger | Hydraulics: Hydraulic - Power Up/Power Down & Gravity Down | Lift Type: Scissor Lift | Stabilizers: Rear Stabilizer Stands | Storage: Lockable Full Tongue Toolbox (Houses Battery, Pump + Storage) | Storage - Options: [-TB02] Top Riser Toolbox | Storage - Options: [-TB03] Full Size Divided Toolbox Upgrade | Tarp: Roll-up Tarp Kit (Pull Bar) 7 ft x 20 ft | Cargo Winch - Options: [-WN02] HD GN Winch Plate | Cargo Winch - Options: [-WN04] Gooseneck Winch Plate | Cargo Winch - Options: [-WN12] Winch 12.5K w/Plate & Battery | Cargo Winch - Options: [-WN18] Winch 18K w/HD Plate & Battery | Trail: [T] Split / Spreader Gate | Lift Cylinder: 5 in x 17 in Cylinder w/Scissor & 5 in x 21 in on 16 ft | Other Options - Options: [-DON1] Removable Deck on the Neck (102 in Wide 96 in Long) | Pull Type: Bumperpull
Frame
8 in x 10 lb. Formed I-Beam Main Frame
Crossmembers
3 in Channel Crossmembers 16 in oc
Floor
7ga. Steel Bed
Fenders
1/8 in Treadplate Steel Fenders
Ramps
6 ft 5 in Slide-In Channel Ramps
Tires
ST235/80R16 Radial Tires 10 ply (3,520 lbs.)
Finish
Paint Color: [K] Primer + Black Powder Coat | Options: [1] Primer + Red Powder Coat | Options: [3] Primer + White Powder Coat | Options: [5] Primer + Tractor Orange Powder Coat | Options: [6] Primer + Grey Powder Coat | Options: [8] Primer + Desert Tan Powder Coat | Options: [B] Primer + Jet Blue Coat (NEW!) | Options: [J] Primer + Industrial Green Coat (NEW!) | Options: [Y] Primer + Industrial Yellow Coat (NEW!) | Options: [G] Primer + Slime Green Coat (NEW!)
Battery
12V Deep Cycle Battery | Options: [-BYEB] 1 Extra Battery | Options: [-BYSL] Solar Battery Charger
Electrical
Charging System: 110V Integrated Trickle Charger
Walls
Sides: 24 in 10ga. UniWall Steel Sides | Options: [-SE24] 24 in Side Extensions (Solid)
Step
Ultra-Wide Monster Step
Gate/Door
Dump: 2-Way Gate (Barn Doors & Spreader Gate)
GVWR
15400 lbs | Options: [-GV09] 9,900 G.V.W.R.
Dry Weight
3600 lbs
Length
Bed: 12 ft | Tongue: 4 ft 10 in (58 in)
Width
Bed: 83 in
