FEATURED 2027 PJ Trailers Voyager Hydraulic Dovetail Gooseneck (LY) 34 ft- 14639PJ
Get in Touch
AT A GLANCE
Industry
Trailer
Make
PJ Trailers
Category
Gooseneck Trailer
Year
2027
Model
Voyager Hydraulic Dovetail Gooseneck (LY)
Trim
34 ft
Stock
14639PJ
Subcategory
Gooseneck Trailer
Description
2027 PJ Trailers Voyager Hydraulic Dovetail Gooseneck (LY) 34 ft
Voyager Hydraulic Dovetail Gooseneck (LY)
Ready to tackle your next big project? The all-new, industry-leading LY Voyager Hydraulic Dovetail Gooseneck is built to deliver.
This all-new gooseneck trailer is engineered for the toughest jobs. Featuring a 12' hydraulic dovetail with a 12,000 lb. loading capacity and a 12-degree ramp angle, it makes loading heavy equipment fast and easy. The Demco EZ Latch Gooseneck Coupler ensures secure, hassle-free hitching, while the Formed ProBeam™ Gooseneck delivers unmatched strength and durability—mile after mile.
What Drives You, Drives Us™

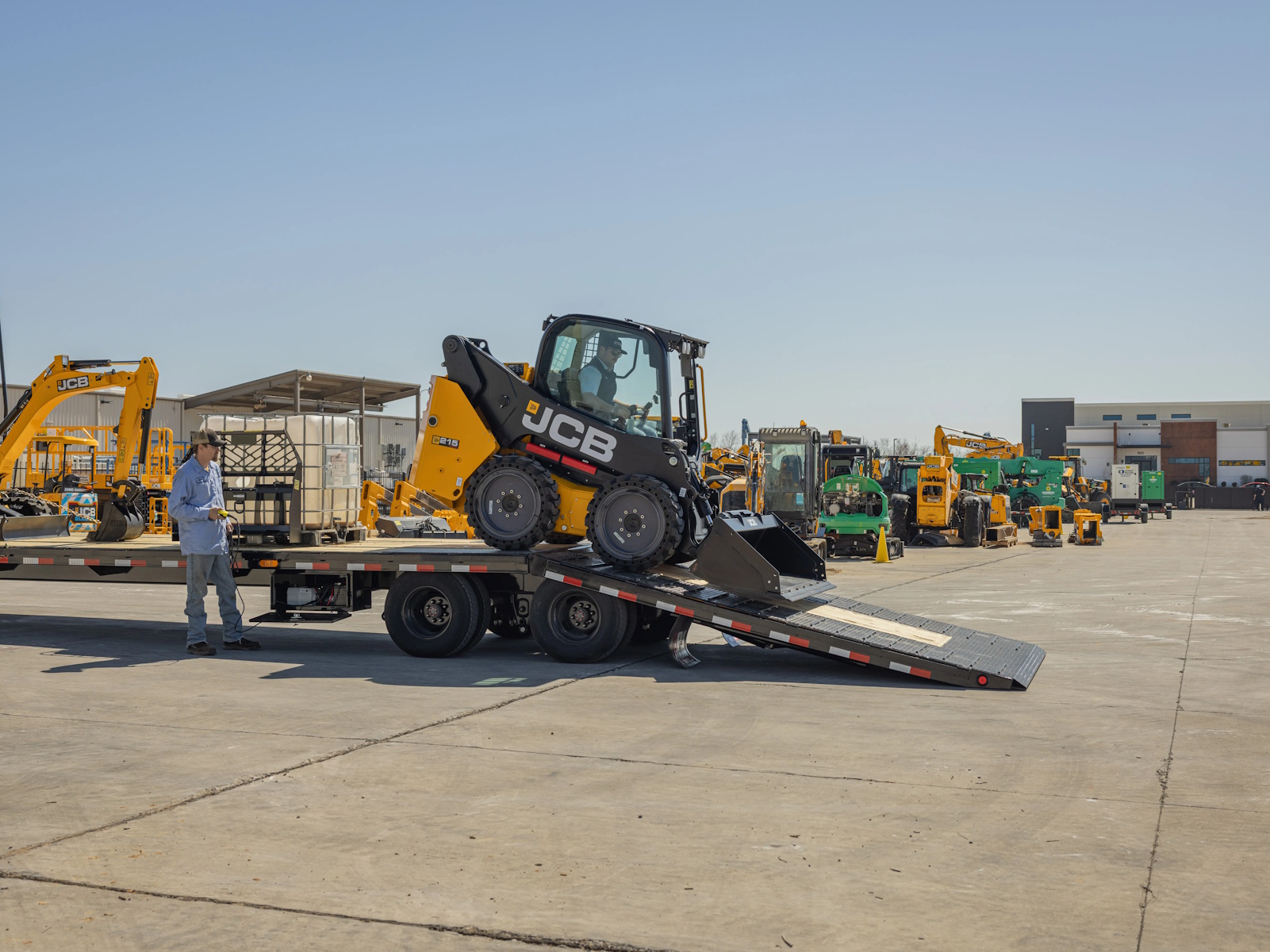

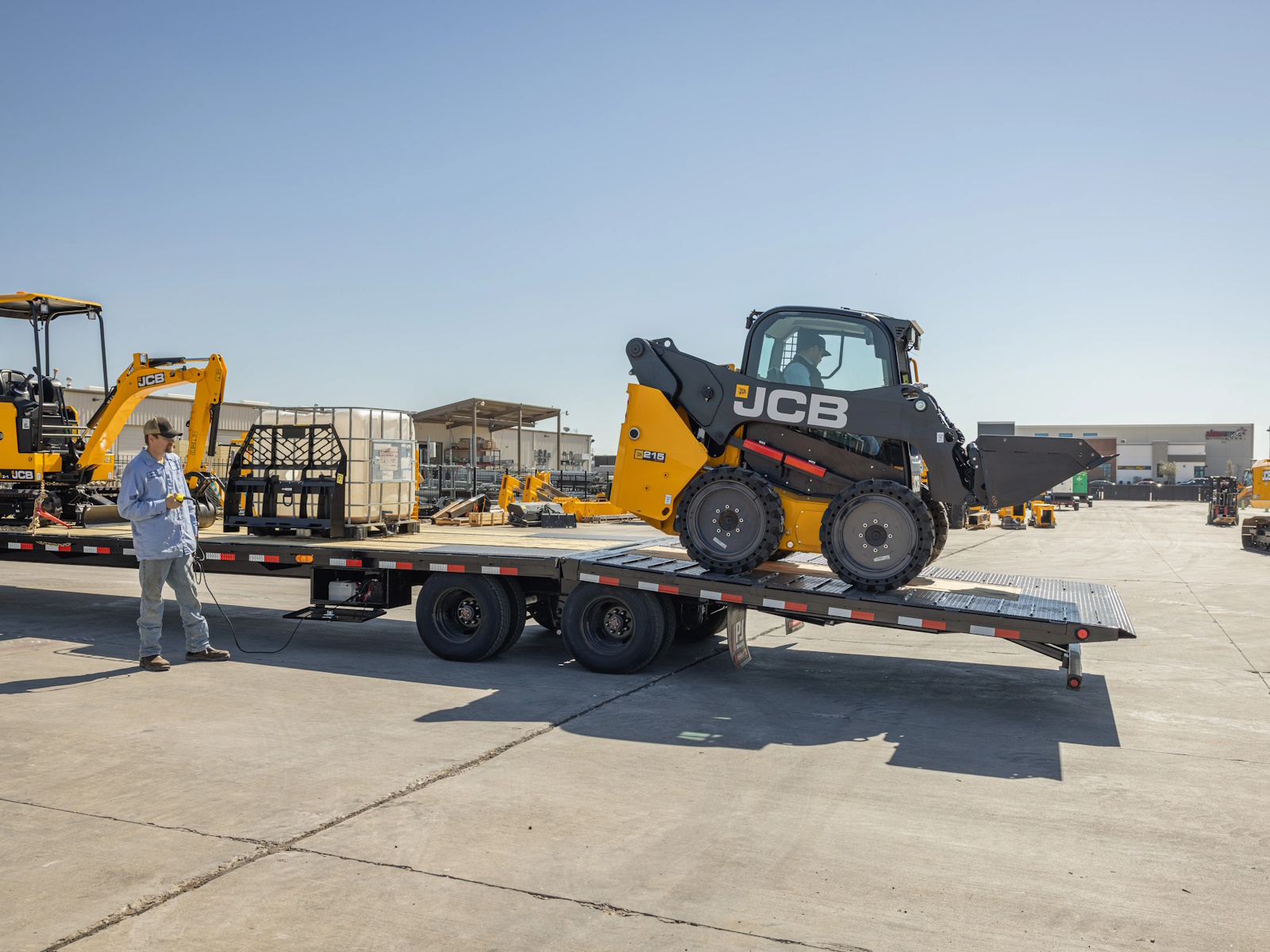

INDUSTRY-LEADING HYDRAULIC DOVETAIL
12' long, 12,000 lb. lifting capacity and 12-degree ramp angle put the LY at the front of the pack for easy loading of heavy equipment.

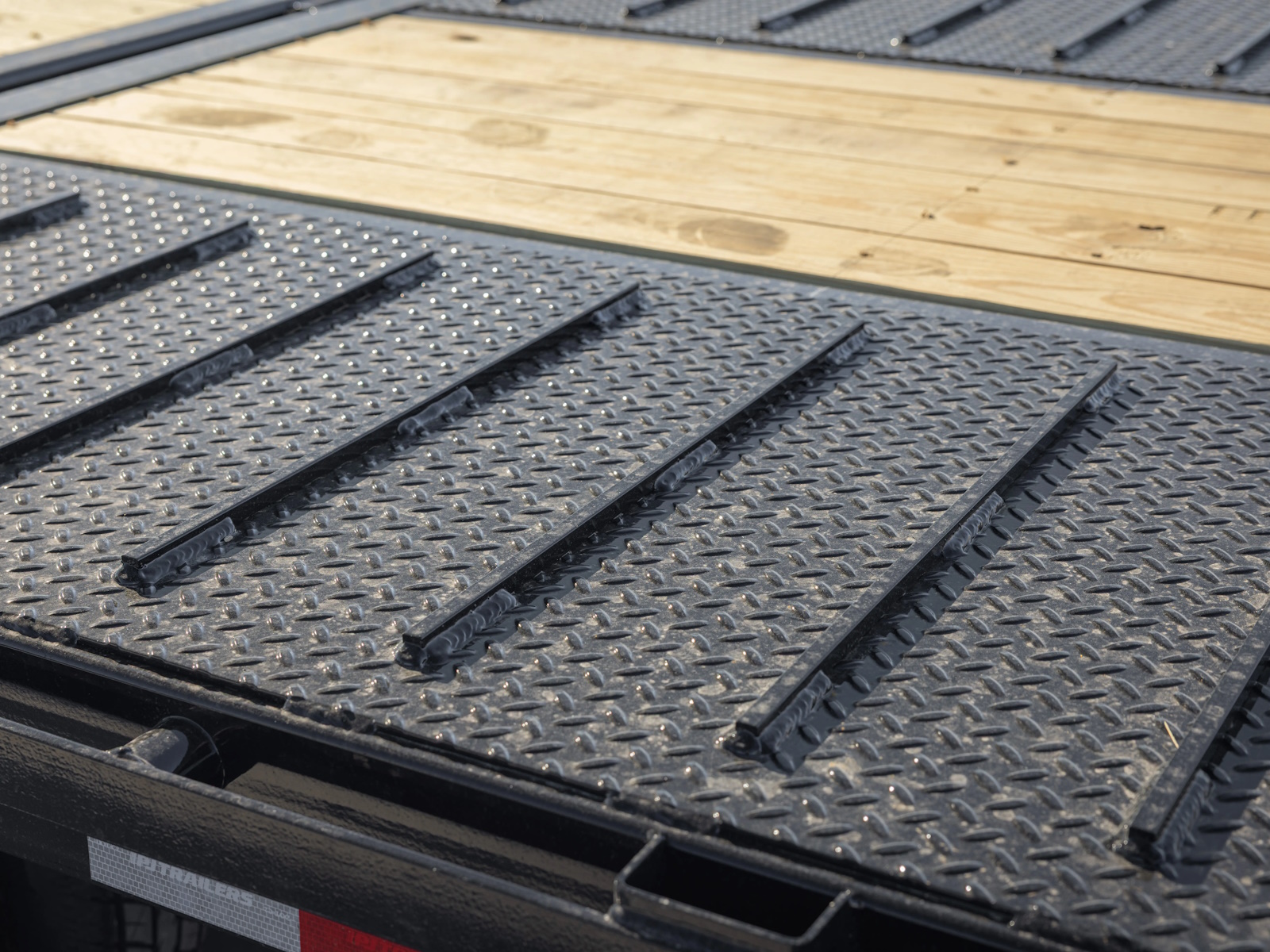

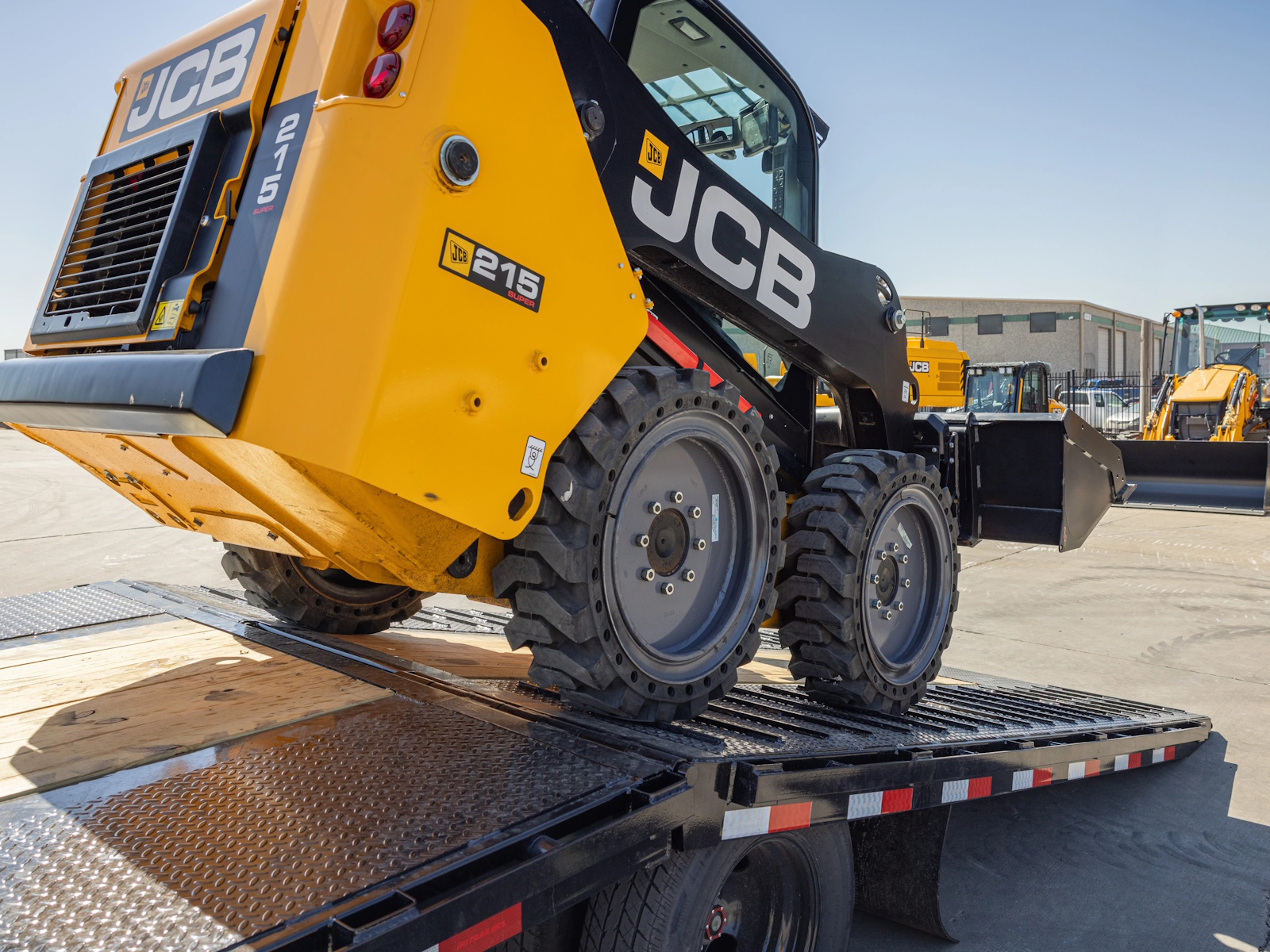

REAR TRACTION
Rear traction bars on diamond plate steel deck allow for wet and muddy conditions to not slow loading equipment with a variety of wheels or tracks.

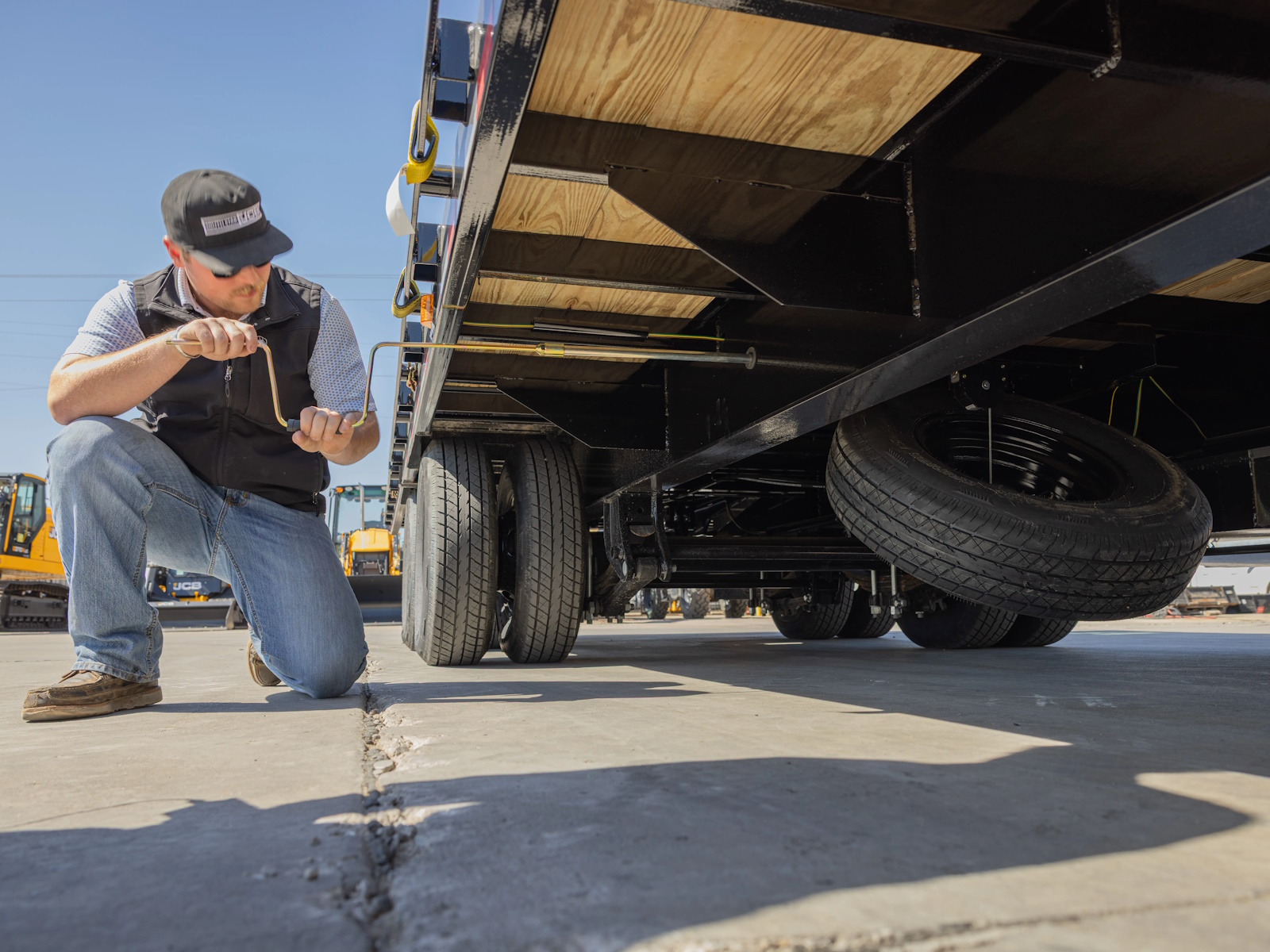

BELOW DECK SPARE
With the easy-to-use below-the-deck spare mount, getting the tire down to change a tire is just as easy as your truck.

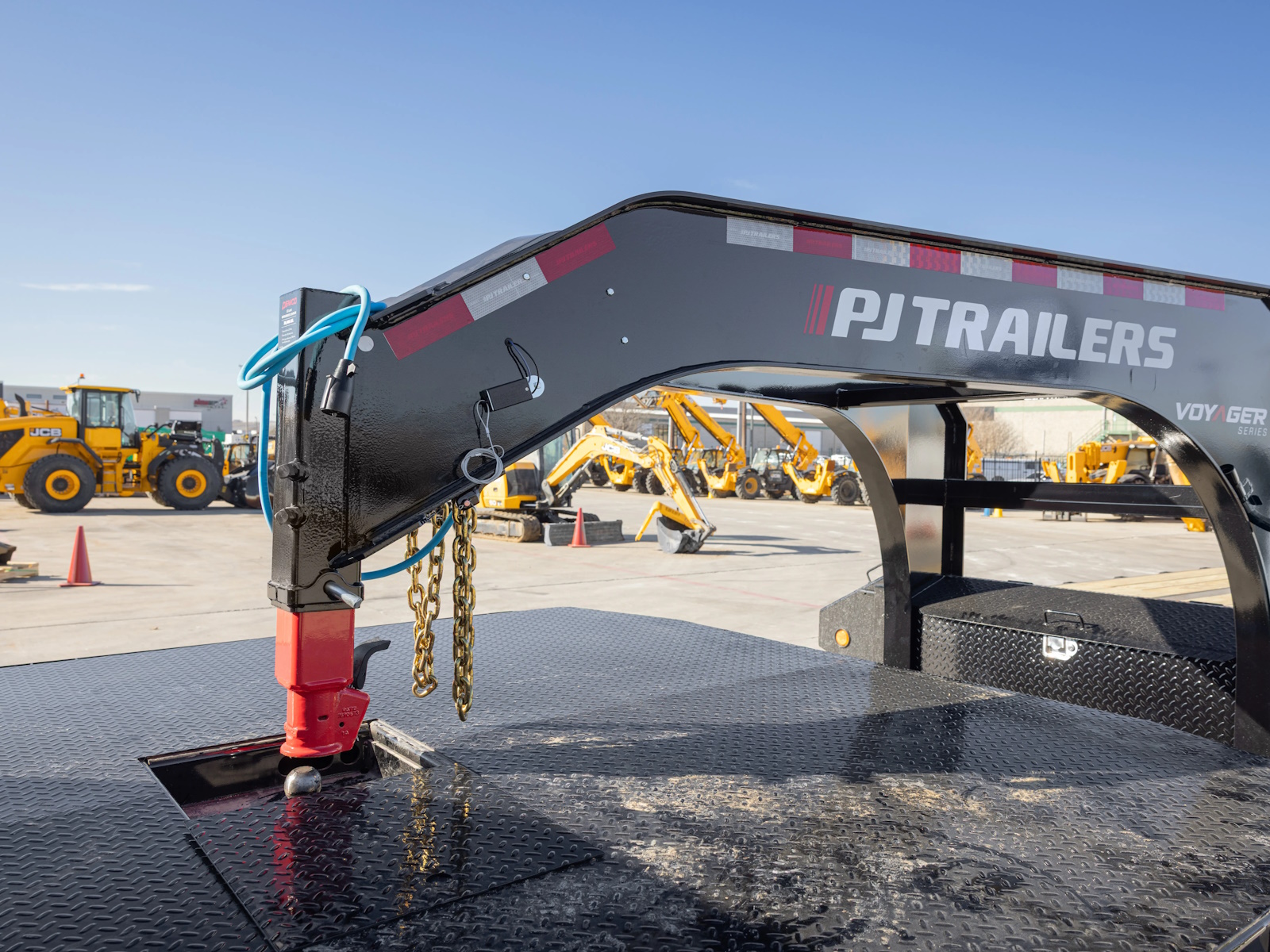

ENGINEERED PROBEAMTM WITH DEMCO EZ LATCH
The engineered neck provides strength and easy hitching with the Demco EZ Latch.
Info
Condition
New
Location
Bonander Trailer - Turlock
Availability
Available
VIN
4P53H4325V1443424
Dry Weight
8250
Color
GREY
Hitch Type
GOOSENECK
Axles
2
Length
34ft
Gvwr
25900
Axle Capacity
2-12000lb
Payload Capacity
17650.0
Hitch Ball Size
2-5/16in SQUARE
Specifications
Axles
[A2BS] (2) 10,000# Axles Electric / Spring | Options: [A2HS] (2) 10,000# Axles Elec/Hyd Disc (1,600 PSI Pump) / Spring | Options: [C2BS] (2) 12,000# Axles Electric / Spring | Options: [C2HS] (2) 12,000# Axles Elec/Hyd Disc (1,600 PSI Pump) / Spring | Options: [D2BS] (2) 12,000# w/14 Ply LR-G Dual T&W Electric / Spring | Options: [D2HS] (2) 12,000# w/14 Ply LR-G Dual T&W Elec/Hyd Disc (1,600 PSI Pump) / Spring | Options: [S2BS] (2) 10,000# w/235/75R17.5 in LR-J Single T&W Electric / Spring | Options: [S2HS] (2) 10,000# w/235/75R17.5 in LR-J Single T&W Elec/Hyd Disc (1,600 PSI Pump) / Spring | Options: [T2BS] (2) 10,000# w/14 Ply LR-G Dual T&W Electric / Spring | Options: [T2HS] (2) 10,000# w/14 Ply LR-G Dual T&W Elec/Hyd Disc (1,600 PSI Pump) / Spring
Suspension
5-Leaf Slipper Spring Suspension
Tongue
14 in x 22 lb. I-beam Tongue
Coupler
[Q] GN 2-5/16 in Square Demco EZ Latch (30,000 lb.) w/ Toolbox
Safety Chains
3/8 in Grade 70 Safety Chain w/Clevis hook (2 each)>
Notes
Jack: Spring Loaded Drop Leg Jack (12,000 lb.) | Jack - Options: [-JA01] Dual HD 25k Jost Jacks | Jack - Options: [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) | Jack - Options: [-JA06] 2 Hydraulic Jacks (GN Upgrade) | Jack - Options: [-JA24] 2 Hyd. Jacks, Single Pump/Battery, 4 Button Pendant that Operates Jacks & Tail | Stake Pockets: 24 in Stake Pocket Spacing | Wiring: All-Weather Wiring Harness (7-way RV) | Spare Mount: Under-Deck Mounted Spare | Tie-Downs - Options: [-RTST] 4 in Ratchets every 4ft w/ Slide Track | Tie-Downs - Options: [-DR01] 1 Extra Pair D-Rings | Charging System: 110V Integrated Trickle Charger | Hydraulics: 12 ft Hydraulic Tail - Power Up / Down | Storage - Options: [-GNCH] GN Lockable Chain Holder | Storage - Options: [-TB02] Top Riser Toolbox | Winch - Options: [-WN02] HD GN Winch Plate | Winch - Options: [-WN18] Winch 18K w/HD Plate & Battery | Pipe Chain Spools: Pipe Spools | Lift Cylinder: Dual 3.5 in x 16 in Hyd. Cylinders | Other Options: [-DON1] Removable Deck on the Neck (102 in Wide 96 in Long) | Other Options: [-GV30] 30,000 GVWR Must have 30k coupler/12k axles or higher | Other Options: [-RAWR] Hinged Side Mount Wood Rack | Pull Type: Gooseneck | Payload Capacity: 15,847 lbs
Frame
14 in x 22 lb. I-Beam Main Frame
Crossmembers
3 in Channel Crossmembers 16 in oc | Options: [-CM12] 12 in OC Crossmembers
Floor
2 in Treated Pine Lumber Deck | [-FLRO] Rough Oak Floor
Lights
Options: [-LT11] Auxiliary Work Light Package
Tires
ST235/80R16 Radial Tires 10 ply (3,080 lbs.) | Spare Tire: ST235/80 R-16 Load Range E (Included)
Finish
Paint Color: [K] Primer + Black Powder Coat | Options: [1] Primer + Red Powder Coat | Options: [3] Primer + White Powder Coat | Options: [5] Primer + Tractor Orange Powder Coat | Options: [6] Primer + Grey Powder Coat | Options: [8] Primer + Desert Tan Powder Coat | Options: [B] Primer + Jet Blue Coat (NEW!) | Options: [J] Primer + Industrial Green Coat (NEW!) | Options: [Y] Primer + Industrial Yellow Coat (NEW!) | Options: [G] Primer + Slime Green Coat (NEW!)
Top Rail
Rubrail: Rubrail & Stake Pockets
Electrical
Breakaway System: Electric Breakaway System w/ Charger
Battery
12V Deep Cycle Battery | Options: [-BYTB] 1 Extra Battery w/Larger Side-Mount Toolbox
Step
Monster Steps (Both Sides)
Ramps
Tail: [S] 12 ft Hydraulic Dovetail w/ 12k Lift and 12° Ramp Angle
GVWR
25000 lbs
Dry Weight
9153 lbs
Length
Deck: 34 ft
Width
Deck: 102 in
